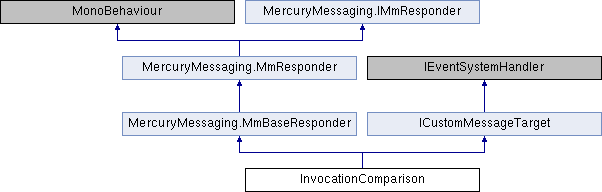

Inheritance diagram for InvocationComparison:

Public Types
enum	TestingMode { Control = 0, Mercury, SendMessage, Event, Execute }
	Various testing modes supported by the invocation comparison system More...

Public Member Functions
delegate void	EventActionTest ()
	Event delegate for event test. More...

override void	Start ()
	Start this instance. More...

override void	Update ()
	Press Space to run tests. More...

void	TimingTest ()
	Run through all tests More...

void	TimingFunction (TestingMode state)
	Timing Function. More...

void	TestFunction ()
	Timing test of standard function invocation in Unity. More...

void	TestMercury ()
	Mercury timing test. More...

void	TestSendMessage ()
	Unity send message timing test. More...

void	TestEvent ()
	Unity event timing test. More...

void	TestExecute ()
	Unity execute timing test. More...

void	SimpleFunction ()
	Empty Function to use for function invocation. More...

override void	MmInvoke (MmMessageType msgType, MmMessage message)
	Overrides the base MmInvoke Here we just stop the stopwatch. But we could throw in a switch (to represent normal usage) too. More...

Public Member Functions inherited from MercuryMessaging.MmBaseResponder
virtual void	SetActive (bool active)
	Handle MmMethod: SetActive More...

virtual void	Initialize ()
	Handle MmMethod: Initialize Initialize allows you to provide additional initialization logic in-between calls to Monobehavior provided Awake() and Start() calls. More...

virtual void	Refresh (List< MmTransform > transformList)
	Handle MmMethod: Refresh More...

override MmRelayNode	GetRelayNode ()
	Implementation of IMmResponder's GetRelayNode. More...

Public Member Functions inherited from MercuryMessaging.MmResponder
virtual void	Awake ()
	Awake: Invokes MmOnAwakeComplete More...

virtual void	MmOnAwakeComplete ()
	Post Awake callback used between objects implementing this interface. This allows for initialization steps that must occur before one instance's Awake and its Start. More...

virtual void	MmOnStartComplete ()
	Post Start callback used between objects implementing this interface This allows for initialization steps that must occur before one instance's Start and its first Update. More...

virtual void	MmRegisterAwakeCompleteCallback (IMmCallback callback)
	It is possible that certain handles are not going to be in-place when registration of the OnAwakeComplete callback is invoked. The is especially true in scenarios where MmRelayNodes are networked. This allows for a deferred registration, eliminating most instances where the Awake callback invocations fail. More...

virtual void	MmRegisterStartCompleteCallback (IMmCallback callback)
	It is possible that certain handles are not going to be in-place when registration of the OnStartComplete callback is invoked. The is especially true in scenarios where MmRelayNodes are networked. This allows for a deferred registration, eliminating most instances where the Start callback invocations fail. More...

Public Attributes
int	Repetitions = 1000
	Number of repetitions for the test. More...

System.Diagnostics.Stopwatch	stopWatch
	The stop watch. More...

System.Diagnostics.Stopwatch	totalWatch

bool	simpleLock = false
	Simple lock to use in some tests. More...

StringBuilder	Results

Events
EventActionTest	OnEventTest
	Occurs when on event test. More...

Additional Inherited Members
Protected Member Functions inherited from MercuryMessaging.MmBaseResponder
virtual void	Switch (string iName)
	Handle MmMethod: Switch More...

virtual void	Complete (bool active)
	Handle MmMethod: Switch More...

virtual void	ApplyTaskInfo (IMmSerializable serializableValue)
	Handle MmMethod: TaskInfo Given a IMmSerializable, extract TaskInfo. More...

virtual void	ReceivedMessage (MmMessage message)
	Handle MmMethod: Base MmMessage. Override this to handle base Mercury Messages. More...

virtual void	ReceivedMessage (MmMessageBool message)
	Handle MmMethod: MessageBool. Override this to handle Mercury's bool messages. More...

virtual void	ReceivedMessage (MmMessageByteArray message)
	Handle MmMethod: MessageByteArray. Override this to handle Mercury's byte array messages. More...

virtual void	ReceivedMessage (MmMessageFloat message)
	Handle MmMethod: MessageFloat. Override this to handle Mercury's float messages. More...

virtual void	ReceivedMessage (MmMessageInt message)
	Handle MmMethod: MessageInt. Override this to handle Mercury's int messages. More...

virtual void	ReceivedMessage (MmMessageSerializable message)
	Handle MmMethod: MessageSerializable. Override this to handle Mercury's serializable messages. More...

virtual void	ReceivedMessage (MmMessageString message)
	Handle MmMethod: MessageString Override this to handle Mercury's string messages. More...

virtual void	ReceivedMessage (MmMessageTransform message)
	Handle MmMethod: MessageTransform Override this to handle Mercury's transform messages. More...

virtual void	ReceivedMessage (MmMessageTransformList message)
	Handle MmMethod: MessageTransformList Override this to handle Mercury's transform list messages. More...

virtual void	ReceivedMessage (MmMessageVector3 message)
	Handle MmMethod: MessageVector3 Override this to handle Mercury's Vector3 messages. More...

virtual void	ReceivedMessage (MmMessageVector4 message)
	Handle MmMethod: MessageVector4 Override this to handle Mercury's Vector4 messages. More...

Properties inherited from MercuryMessaging.MmResponder
GameObject	MmGameObject `[get]`
	Handle to an instance's GameObject. More...

MmTag	Tag `[get, set]`
	MmTags allow you to specify filters for execution in Mercury XM graphs. More...

bool	TagCheckEnabled `[get, set]`
	Determines whether tag checking is enabled for this IMmResponder More...

Properties inherited from MercuryMessaging.IMmResponder
MmTag	Tag `[get, set]`
	MmTags allow you to specify filters for execution in MercuryMessaging Hierarchies. MmTag More...

GameObject	MmGameObject `[get]`
	Handle to an instance's GameObject. More...

bool	TagCheckEnabled `[get, set]`
	Determines whether tag checking is enabled for this IMmResponder More...

Member Enumeration Documentation

◆ TestingMode

enum InvocationComparison.TestingMode

strong

Various testing modes supported by the invocation comparison system

Member Function Documentation

◆ EventActionTest()

delegate void InvocationComparison.EventActionTest ( )

Event delegate for event test.

◆ MmInvoke()

override void InvocationComparison.MmInvoke	(	MmMessageType	msgType,
		MmMessage	message
	)

virtual

Overrides the base MmInvoke Here we just stop the stopwatch. But we could throw in a switch (to represent normal usage) too.

Reimplemented from MercuryMessaging.MmBaseResponder.

◆ SimpleFunction()

void InvocationComparison.SimpleFunction ( )

Empty Function to use for function invocation.

Implements ICustomMessageTarget.

◆ Start()

override void InvocationComparison.Start ( )

virtual

Start this instance.

Reimplemented from MercuryMessaging.MmResponder.

◆ TestEvent()

void InvocationComparison.TestEvent ( )

Unity event timing test.

◆ TestExecute()

void InvocationComparison.TestExecute ( )

Unity execute timing test.

◆ TestFunction()

void InvocationComparison.TestFunction ( )

Timing test of standard function invocation in Unity.

◆ TestMercury()

void InvocationComparison.TestMercury ( )

Mercury timing test.

◆ TestSendMessage()

void InvocationComparison.TestSendMessage ( )

Unity send message timing test.

◆ TimingFunction()

void InvocationComparison.TimingFunction ( TestingMode state )

Timing Function.

Parameters

state State.

◆ TimingTest()

void InvocationComparison.TimingTest ( )

Run through all tests

◆ Update()

override void InvocationComparison.Update ( )

virtual

Press Space to run tests.

Reimplemented from MercuryMessaging.MmResponder.

Member Data Documentation

◆ Repetitions

int InvocationComparison.Repetitions = 1000

Number of repetitions for the test.

◆ simpleLock

bool InvocationComparison.simpleLock = false

Simple lock to use in some tests.

◆ stopWatch

System.Diagnostics.Stopwatch InvocationComparison.stopWatch

The stop watch.

Event Documentation

◆ OnEventTest

EventActionTest InvocationComparison.OnEventTest

Occurs when on event test.

The documentation for this class was generated from the following file:

C:/Users/ce223/Documents/Projects/MercuryMessaging/Assets/MercuryMessaging/Tutorials/SimpleScene/Scripts/InvocationComparison.cs
