Base routing node of Mercury XM. Contains a list of MmResponders and sends MmMessages to responders in list, following the specifications of control blocks to MmInvoke method. More...

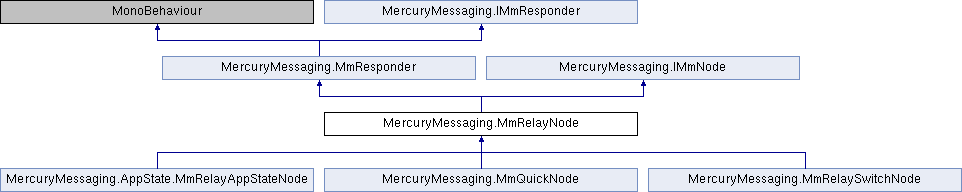

Inheritance diagram for MercuryMessaging.MmRelayNode:

Public Member Functions
	MmRelayNode ()
	Creates an empty MmResponder list on construction. More...

override void	Awake ()
	Grab attached MmNetworkResponder, if present. Detect and refresh parents. Instantiate any cloneable MmResponders. More...

override void	Start ()
	Calls MmOnStartComplete through MmResponder Start. More...

virtual MmRoutingTableItem	MmAddToRoutingTable (MmResponder mmResponder, MmLevelFilter level)
	Add an MmResponder to the MmRoutingTable, with level designation. More...

virtual MmRoutingTableItem	MmAddToRoutingTable (MmResponder mmResponder, string newName)
	Add an MmResponder to the MmRoutingTable, with level designation. More...

void	MmRefreshResponders ()
	Grab all MmResponders attached to the same GameObject. Does not grab any other MmRelayNodes attached to the same GameObject. More...

void	RefreshParents ()
	Iterates through RoutingTable list and assigns this MmRelayNode as a parent to child MmResponders. More...

virtual void	MmAddNodeToList (GameObject go)
	Given a GameObject, extract an MmRelayNode if present and add it to this MmRelayNode's Responder list. More...

virtual void	AddParent (MmRelayNode parent)
	Given an MmRelayNode, add it as parent to this instance's MmRoutingTable. More...

override void	MmInvoke (MmMessageType msgType, MmMessage message)
	Invoke an MmMethod. More...

virtual void	MmInvoke (MmMethod mmMethod, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with no parameter. More...

virtual void	MmInvoke (MmMethod mmMethod, bool param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: bool. More...

virtual void	MmInvoke (MmMethod mmMethod, int param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: int. More...

virtual void	MmInvoke (MmMethod mmMethod, float param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: float. More...

virtual void	MmInvoke (MmMethod mmMethod, Vector3 param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: Vector3. More...

virtual void	MmInvoke (MmMethod mmMethod, Vector4 param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: Vector4. More...

virtual void	MmInvoke (MmMethod mmMethod, string param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: string. More...

virtual void	MmInvoke (MmMethod mmMethod, byte[] param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: byte array. More...

virtual void	MmInvoke (MmMethod mmMethod, MmTransform param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: MmTransform. More...

virtual void	MmInvoke (MmMethod mmMethod, List< MmTransform > param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: List<MmTransform>. More...

virtual void	MmInvoke (MmMethod mmMethod, IMmSerializable param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: IMmSerializable. More...

override MmRelayNode	GetRelayNode ()
	Implementation of IMmResponder's GetRelayNode, which returns this. More...

Public Member Functions inherited from MercuryMessaging.MmResponder
virtual void	Update ()
	Base Update of MmResponder Derived classes should always override. More...

virtual void	MmOnAwakeComplete ()
	Post Awake callback used between objects implementing this interface. This allows for initialization steps that must occur before one instance's Awake and its Start. More...

virtual void	MmOnStartComplete ()
	Post Start callback used between objects implementing this interface This allows for initialization steps that must occur before one instance's Start and its first Update. More...

virtual void	MmRegisterAwakeCompleteCallback (IMmCallback callback)
	It is possible that certain handles are not going to be in-place when registration of the OnAwakeComplete callback is invoked. The is especially true in scenarios where MmRelayNodes are networked. This allows for a deferred registration, eliminating most instances where the Awake callback invocations fail. More...

virtual void	MmRegisterStartCompleteCallback (IMmCallback callback)
	It is possible that certain handles are not going to be in-place when registration of the OnStartComplete callback is invoked. The is especially true in scenarios where MmRelayNodes are networked. This allows for a deferred registration, eliminating most instances where the Start callback invocations fail. More...

Static Public Member Functions
static MmRelayNode	GetRelayNode (IMmResponder iMmResponder)
	Given an MmResponder, extract an MmRelayNode from it's GameObject, if one is present. More...

static MmRelayNode	GetRelayNode (GameObject go)
	Given a GameObject, extract the first MmRelayNode, if any are present. More...

Public Attributes
bool	FlipNetworkFlagOnSend = false
	Does the node convert the message to a local message from networked on post send in order to guarantee that it does not send it over the network deeper in the hierarchy. More...

bool	AllowNetworkPropagationLocally = false
	Allows Node to pass a Network-only message into the hierarchy More...

bool	ReparentClonedRespondersToSelf = true
	Indicates whether cloned MmResponders should be added as children to the MmRelayNode's GameObject. More...

bool	Initialized
	Indicates whether the MmRelayNode is ready for use This gets set either in Awake or on the first MmInvoke. More...

bool	AutoGrabAttachedResponders = true
	There may be an issue where a message is received before self responders have been added to the list. In order to resolve that issue, we allow the node to automatically grab all responders. The consequence here is that you cannot have responders on a node that do not automatically get added to the list. More...

MmRoutingTable	RoutingTable
	List of associated Mercury Responders. Each Mercury Routing Table Item contains: MmResponder, Name, Level (Self, Child, Parent), Cloneable (Indicates whether the Responder should be cloned when MmRelayNode is awoken), MmTag (Multi-tag filter supported by Mercury XM). More...

Protected Member Functions
void	InitializeNode ()

virtual MmLevelFilter	LevelFilterAdjust (ref MmMessage message, MmLevelFilter direction)
	If the level filter is designated 'Child', then it is recorded locally, but converted to a 'Child+Self' for use by the RoutingTable (which need to pass the message on to all children, but still need to be able to execute the message on their own responders, otherwise, it just goes to the terminal points of the graph without ever executing). More...

virtual MmActiveFilter	ActiveFilterAdjust (ref MmMessage message)
	Allows modification of active filter in message as it gets passed between MmRelayNodes. More...

virtual MmSelectedFilter	SelectedFilterAdjust (ref MmMessage message)
	Allows modification of selected filter in message as it gets passed between MmRelayNodes. More...

virtual MmNetworkFilter	NetworkFilterAdjust (ref MmMessage message)
	Allows modification of network filter in message as it gets passed between MmRelayNodes. More...

virtual bool	ResponderCheck (MmLevelFilter levelFilter, MmActiveFilter activeFilter, MmSelectedFilter selectedFilter, MmNetworkFilter networkFilter, MmRoutingTableItem mmRoutingTableItem, MmMessage message)
	This method determines if a particular MmResponder should receive a message via MmInvoke. This performs 4 checks: Tag Check, Level Check, Active Check, & Selected Check. More...

virtual bool	TagCheck (MmRoutingTableItem mmRoutingTableItem, MmMessage message)
	Determine if MmResponder passes MmRelayNode tag filter check using value embedded in MmMessage. More...

virtual bool	LevelCheck (MmLevelFilter levelFilter, IMmResponder responder, MmLevelFilter responderLevel)
	Determine if MmResponder passes MmRelayNode level filter check using value embedded in MmMessage. More...

virtual bool	ActiveCheck (MmActiveFilter activeFilter, IMmResponder responder)
	Determine if MmResponder passes MmRelayNode active filter check using value embedded in MmMessage. More...

virtual bool	SelectedCheck (MmSelectedFilter selectedFilter, IMmResponder responder)
	Determine if MmResponder passes MmRelayNode selected filter check using value embedded in MmMessage. More...

virtual bool	NetworkCheck (MmRoutingTableItem mmRoutingTableItem, MmMessage message)
	Checks if a responder should recieve a message based on the network flag in a control block. Network messages can go to other nodes, but not to self responders. More...

Protected Attributes
Queue< MmRoutingTableItem >	MmRespondersToAdd
	Queue of MmResponders to add once list is no longer in use by an MmInvoke More...

Queue< KeyValuePair< MmMessageType, MmMessage > >	SerialExecutionQueue
	Queue of Memessages to route if serialExecution is enabled and messages are received while another message is being executed. More...

Properties
IMmNetworkResponder	MmNetworkResponder `[get]`
	Associated MmNetworkResponder. If an MmNetworkResponder is attached o the same GameObject, it will automatically attach to this MmRelayNode. This turns all MmMethod invocations into networked MmMethod invocations, with no additional effort. More...

string	Name `[get]`
	MmRelayNode name: returns GameObject name. More...

Properties inherited from MercuryMessaging.MmResponder
GameObject	MmGameObject `[get]`
	Handle to an instance's GameObject. More...

MmTag	Tag `[get, set]`
	MmTags allow you to specify filters for execution in Mercury XM graphs. More...

bool	TagCheckEnabled `[get, set]`
	Determines whether tag checking is enabled for this IMmResponder More...

Properties inherited from MercuryMessaging.IMmResponder
MmTag	Tag `[get, set]`
	MmTags allow you to specify filters for execution in MercuryMessaging Hierarchies. MmTag More...

GameObject	MmGameObject `[get]`
	Handle to an instance's GameObject. More...

bool	TagCheckEnabled `[get, set]`
	Determines whether tag checking is enabled for this IMmResponder More...

Detailed Description

Base routing node of Mercury XM. Contains a list of MmResponders and sends MmMessages to responders in list, following the specifications of control blocks to MmInvoke method.

Constructor & Destructor Documentation

◆ MmRelayNode()

MercuryMessaging.MmRelayNode.MmRelayNode ( )

Creates an empty MmResponder list on construction.

Member Function Documentation

◆ ActiveCheck()

virtual bool MercuryMessaging.MmRelayNode.ActiveCheck	(	MmActiveFilter	activeFilter,
		IMmResponder	responder
	)

protectedvirtual

Determine if MmResponder passes MmRelayNode active filter check using value embedded in MmMessage.

Parameters

activeFilter	Active filter value extracted from MmMessage.
responder	Observed MmResponder

Returns: Returns whether observed MmResponder has passed active filter check.

◆ ActiveFilterAdjust()

virtual MmActiveFilter MercuryMessaging.MmRelayNode.ActiveFilterAdjust ( ref MmMessage message )

protectedvirtual

Allows modification of active filter in message as it gets passed between MmRelayNodes.

Parameters

message MmMessage to be adjusted.

Returns: Base implementation returns messages's active filter.

◆ AddParent()

virtual void MercuryMessaging.MmRelayNode.AddParent ( MmRelayNode parent )

virtual

Given an MmRelayNode, add it as parent to this instance's MmRoutingTable.

Parameters

parent MmRelayNode to add as a parent.

◆ Awake()

override void MercuryMessaging.MmRelayNode.Awake ( )

virtual

Grab attached MmNetworkResponder, if present. Detect and refresh parents. Instantiate any cloneable MmResponders.

Reimplemented from MercuryMessaging.MmResponder.

Reimplemented in MercuryMessaging.MmRelaySwitchNode.

◆ GetRelayNode() [1/3]

override MmRelayNode MercuryMessaging.MmRelayNode.GetRelayNode ( )

virtual

Implementation of IMmResponder's GetRelayNode, which returns this.

Returns: Returns this MmRelayNode.

Implements MercuryMessaging.MmResponder.

◆ GetRelayNode() [2/3]

static MmRelayNode MercuryMessaging.MmRelayNode.GetRelayNode ( IMmResponder iMmResponder )

static

Given an MmResponder, extract an MmRelayNode from it's GameObject, if one is present.

Parameters

iMmResponder Observed MmResponder

Returns: an MmRelayNode if one is present on the same GameObject.

◆ GetRelayNode() [3/3]

static MmRelayNode MercuryMessaging.MmRelayNode.GetRelayNode ( GameObject go )

static

Given a GameObject, extract the first MmRelayNode, if any are present.

Parameters

go	Observed GameObject.

Returns: First MmRelayNode on object, if any present.

◆ LevelCheck()

virtual bool MercuryMessaging.MmRelayNode.LevelCheck	(	MmLevelFilter	levelFilter,
		IMmResponder	responder,
		MmLevelFilter	responderLevel
	)

protectedvirtual

Determine if MmResponder passes MmRelayNode level filter check using value embedded in MmMessage.

Parameters

levelFilter	Level filter value extracted from MmMessage.
responder	Observed MmResponder.
responderLevel	Observed MmResponder Level.

Returns: Returns whether observed MmResponder has passed level filter check.

◆ LevelFilterAdjust()

virtual MmLevelFilter MercuryMessaging.MmRelayNode.LevelFilterAdjust	(	ref MmMessage	message,
		MmLevelFilter	direction
	)

protectedvirtual

If the level filter is designated 'Child', then it is recorded locally, but converted to a 'Child+Self' for use by the RoutingTable (which need to pass the message on to all children, but still need to be able to execute the message on their own responders, otherwise, it just goes to the terminal points of the graph without ever executing).

Parameters

message	MmMessage to be adjusted.
direction	Intended direction of message

Returns: Base implementation returns messages's level filter.

◆ MmAddNodeToList()

virtual void MercuryMessaging.MmRelayNode.MmAddNodeToList ( GameObject go )

virtual

Given a GameObject, extract an MmRelayNode if present and add it to this MmRelayNode's Responder list.

Parameters

go	GameObject that should have an MmRelayNode attached.

◆ MmAddToRoutingTable() [1/2]

virtual MmRoutingTableItem MercuryMessaging.MmRelayNode.MmAddToRoutingTable	(	MmResponder	mmResponder,
		MmLevelFilter	level
	)

virtual

Add an MmResponder to the MmRoutingTable, with level designation.

Parameters

mmResponder	MmResponder to be added.
level	Level designation of responder.

Returns: Reference to new MmRoutingTable item.

◆ MmAddToRoutingTable() [2/2]

virtual MmRoutingTableItem MercuryMessaging.MmRelayNode.MmAddToRoutingTable	(	MmResponder	mmResponder,
		string	newName
	)

virtual

Add an MmResponder to the MmRoutingTable, with level designation.

Parameters

mmResponder	MmResponder to be added.
newName	Name of MmResponder as it will appear in list.

Returns: Reference to new MmRoutingTable item.

◆ MmInvoke() [1/12]

override void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMessageType	msgType,
		MmMessage	message
	)

Invoke an MmMethod.

Parameters

msgType	Type of message. This specifies the type of the payload. This is important in networked scenarios, when proper deseriaization into the correct type requires knowing what was used to serialize the object originally.
message	The message to send. This class builds on UNET's MessageBase so it is Auto [de]serialized by UNET.

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [2/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with no parameter.

Parameters

mmMethod	MmMethod Identifier - MmMethod
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [3/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		bool	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: bool.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: bool.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [4/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		int	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: int.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: int.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [5/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		float	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: float.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: float.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [6/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		Vector3	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: Vector3.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: Vector3.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [7/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		Vector4	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: Vector4.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: Vector4.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [8/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		string	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: string.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: string.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [9/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		byte []	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: byte array.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: byte array.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [10/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		MmTransform	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: MmTransform.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: MmTransform. MmTransform
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [11/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		List< MmTransform >	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: List<MmTransform>.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: List<MmTransform>.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmInvoke() [12/12]

virtual void MercuryMessaging.MmRelayNode.MmInvoke	(	MmMethod	mmMethod,
		IMmSerializable	param,
		MmMetadataBlock	metadataBlock = `null`
	)

virtual

Invoke an MmMethod with parameter: IMmSerializable.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: IMmSerializable. IMmSerializable
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implements MercuryMessaging.IMmNode.

◆ MmRefreshResponders()

void MercuryMessaging.MmRelayNode.MmRefreshResponders ( )

Grab all MmResponders attached to the same GameObject. Does not grab any other MmRelayNodes attached to the same GameObject.

◆ NetworkCheck()

virtual bool MercuryMessaging.MmRelayNode.NetworkCheck	(	MmRoutingTableItem	mmRoutingTableItem,
		MmMessage	message
	)

protectedvirtual

Checks if a responder should recieve a message based on the network flag in a control block. Network messages can go to other nodes, but not to self responders.

Parameters

mmRoutingTableItem	Observed MmResponder
message	Input message.

Returns

◆ NetworkFilterAdjust()

virtual MmNetworkFilter MercuryMessaging.MmRelayNode.NetworkFilterAdjust ( ref MmMessage message )

protectedvirtual

Allows modification of network filter in message as it gets passed between MmRelayNodes.

Parameters

message MmMessage to be adjusted.

Returns: Base implementation returns messages's network filter.

◆ RefreshParents()

void MercuryMessaging.MmRelayNode.RefreshParents ( )

Iterates through RoutingTable list and assigns this MmRelayNode as a parent to child MmResponders.

◆ ResponderCheck()

virtual bool MercuryMessaging.MmRelayNode.ResponderCheck	(	MmLevelFilter	levelFilter,
		MmActiveFilter	activeFilter,
		MmSelectedFilter	selectedFilter,
		MmNetworkFilter	networkFilter,
		MmRoutingTableItem	mmRoutingTableItem,
		MmMessage	message
	)

protectedvirtual

This method determines if a particular MmResponder should receive a message via MmInvoke. This performs 4 checks: Tag Check, Level Check, Active Check, & Selected Check.

Parameters

levelFilter	Extracted message level filter - before adjust.
activeFilter	Extracted message active filter - before adjust.
selectedFilter	Extracted message selected filter - before adjust.
networkFilter	Extracted message network filter - before adjust.
mmRoutingTableItem	RoutingTableItem of currently observed MmResponder
message	MmMessage to be checked.

Returns: Returns whether responder has passed all checks.

◆ SelectedCheck()

virtual bool MercuryMessaging.MmRelayNode.SelectedCheck	(	MmSelectedFilter	selectedFilter,
		IMmResponder	responder
	)

protectedvirtual

Determine if MmResponder passes MmRelayNode selected filter check using value embedded in MmMessage.

Parameters

selectedFilter	Selected filter value extracted from MmMessage.
responder	Observed MmResponder

Returns: Returns whether observed MmResponder has passed selected filter check. In base MmRelayNode, this always returns true.

Reimplemented in MercuryMessaging.MmRelaySwitchNode.

◆ SelectedFilterAdjust()

virtual MmSelectedFilter MercuryMessaging.MmRelayNode.SelectedFilterAdjust ( ref MmMessage message )

protectedvirtual

Allows modification of selected filter in message as it gets passed between MmRelayNodes.

Parameters

message MmMessage to be adjusted.

Returns: Base implementation returns messages's selected filter.

◆ Start()

override void MercuryMessaging.MmRelayNode.Start ( )

virtual

Calls MmOnStartComplete through MmResponder Start.

Reimplemented from MercuryMessaging.MmResponder.

Reimplemented in MercuryMessaging.MmRelaySwitchNode.

◆ TagCheck()

virtual bool MercuryMessaging.MmRelayNode.TagCheck	(	MmRoutingTableItem	mmRoutingTableItem,
		MmMessage	message
	)

protectedvirtual

Determine if MmResponder passes MmRelayNode tag filter check using value embedded in MmMessage.

Parameters

mmRoutingTableItem	RoutingTableItem of currently observed MmResponder
message	MmMessage to be checked.

Returns: Returns whether observed MmResponder has passed tag check.

Member Data Documentation

◆ AllowNetworkPropagationLocally

bool MercuryMessaging.MmRelayNode.AllowNetworkPropagationLocally = false

Allows Node to pass a Network-only message into the hierarchy

◆ AutoGrabAttachedResponders

bool MercuryMessaging.MmRelayNode.AutoGrabAttachedResponders = true

There may be an issue where a message is received before self responders have been added to the list. In order to resolve that issue, we allow the node to automatically grab all responders. The consequence here is that you cannot have responders on a node that do not automatically get added to the list.

◆ FlipNetworkFlagOnSend

bool MercuryMessaging.MmRelayNode.FlipNetworkFlagOnSend = false

Does the node convert the message to a local message from networked on post send in order to guarantee that it does not send it over the network deeper in the hierarchy.

◆ Initialized

bool MercuryMessaging.MmRelayNode.Initialized

Indicates whether the MmRelayNode is ready for use This gets set either in Awake or on the first MmInvoke.

◆ MmRespondersToAdd

Queue<MmRoutingTableItem> MercuryMessaging.MmRelayNode.MmRespondersToAdd

protected

Initial value:

=

new Queue<MmRoutingTableItem>()

Queue of MmResponders to add once list is no longer in use by an MmInvoke

◆ ReparentClonedRespondersToSelf

bool MercuryMessaging.MmRelayNode.ReparentClonedRespondersToSelf = true

Indicates whether cloned MmResponders should be added as children to the MmRelayNode's GameObject.

◆ RoutingTable

MmRoutingTable MercuryMessaging.MmRelayNode.RoutingTable

List of associated Mercury Responders. Each Mercury Routing Table Item contains: MmResponder, Name, Level (Self, Child, Parent), Cloneable (Indicates whether the Responder should be cloned when MmRelayNode is awoken), MmTag (Multi-tag filter supported by Mercury XM).

◆ SerialExecutionQueue

Queue<KeyValuePair<MmMessageType, MmMessage> > MercuryMessaging.MmRelayNode.SerialExecutionQueue

protected

Initial value:

=

new Queue<KeyValuePair<MmMessageType, MmMessage>>()

Queue of Memessages to route if serialExecution is enabled and messages are received while another message is being executed.

Property Documentation

◆ MmNetworkResponder

IMmNetworkResponder MercuryMessaging.MmRelayNode.MmNetworkResponder

get

Associated MmNetworkResponder. If an MmNetworkResponder is attached o the same GameObject, it will automatically attach to this MmRelayNode. This turns all MmMethod invocations into networked MmMethod invocations, with no additional effort.

◆ Name

string MercuryMessaging.MmRelayNode.Name

get

MmRelayNode name: returns GameObject name.

The documentation for this class was generated from the following file:

C:/Users/ce223/Documents/Projects/MercuryMessaging/Assets/MercuryMessaging/Protocol/MmRelayNode.cs

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Properties

Detailed Description

Constructor & Destructor Documentation

◆ MmRelayNode()

Member Function Documentation

◆ ActiveCheck()

◆ ActiveFilterAdjust()

◆ AddParent()

◆ Awake()

◆ GetRelayNode() [1/3]

◆ GetRelayNode() [2/3]

◆ GetRelayNode() [3/3]

◆ LevelCheck()

◆ LevelFilterAdjust()

◆ MmAddNodeToList()

◆ MmAddToRoutingTable() [1/2]

◆ MmAddToRoutingTable() [2/2]

◆ MmInvoke() [1/12]

◆ MmInvoke() [2/12]

◆ MmInvoke() [3/12]

◆ MmInvoke() [4/12]

◆ MmInvoke() [5/12]

◆ MmInvoke() [6/12]

◆ MmInvoke() [7/12]

◆ MmInvoke() [8/12]

◆ MmInvoke() [9/12]

◆ MmInvoke() [10/12]

◆ MmInvoke() [11/12]

◆ MmInvoke() [12/12]

◆ MmRefreshResponders()

◆ NetworkCheck()

◆ NetworkFilterAdjust()

◆ RefreshParents()

◆ ResponderCheck()

◆ SelectedCheck()

◆ SelectedFilterAdjust()

◆ Start()

◆ TagCheck()

Member Data Documentation

◆ AllowNetworkPropagationLocally

◆ AutoGrabAttachedResponders

◆ FlipNetworkFlagOnSend

◆ Initialized

◆ MmRespondersToAdd

◆ ReparentClonedRespondersToSelf

◆ RoutingTable

◆ SerialExecutionQueue

Property Documentation

◆ MmNetworkResponder

◆ Name
