MercuryMessaging.IMmNode Interface Reference

Defines methods required by an MmResponder & utility methods making invocation MmMethods with built-in MmMessages easier. More...

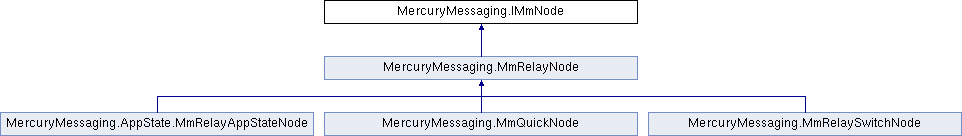

Inheritance diagram for MercuryMessaging.IMmNode:

Public Member Functions
void	MmInvoke (MmMessageType msgType, MmMessage message)
	Invoke an MmMethod. More...
void	MmInvoke (MmMethod mmMethod, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with no parameter. More...
void	MmInvoke (MmMethod mmMethod, int param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: int. More...
void	MmInvoke (MmMethod mmMethod, Vector3 param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: Vector3. More...
void	MmInvoke (MmMethod mmMethod, Vector4 param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: Vector4. More...
void	MmInvoke (MmMethod mmMethod, string param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: string. More...
void	MmInvoke (MmMethod mmMethod, float param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: float. More...
void	MmInvoke (MmMethod mmMethod, byte[] param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: byte array. More...
void	MmInvoke (MmMethod mmMethod, bool param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: bool. More...
void	MmInvoke (MmMethod mmMethod, IMmSerializable param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: IMmSerializable. More...
void	MmInvoke (MmMethod mmMethod, MmTransform param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: MmTransform. More...
void	MmInvoke (MmMethod mmMethod, List< MmTransform > param, MmMetadataBlock metadataBlock)
	Invoke an MmMethod with parameter: List<MmTransform>. More...

Detailed Description

Defines methods required by an MmResponder & utility methods making invocation MmMethods with built-in MmMessages easier.

Member Function Documentation

MmInvoke() [1/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMessageType	msgType,
		MmMessage	message
	)

Invoke an MmMethod.

Parameters

msgType	Type of message. This specifies the type of the payload. This is important in networked scenarios, when proper deseriaization into the correct type requires knowing what was used to serialize the object originally.
msg	The message to send. This class builds on UNET's MessageBase so it is Auto [de]serialized by UNET.

Implemented in MercuryMessaging.MmRelayNode, and MercuryMessaging.MmQuickNode.

MmInvoke() [2/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with no parameter.

Parameters

mmMethod	MmMethod Identifier - MmMethod
metadataBlock	Object defining the routing of MmMessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [3/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		int	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: int.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: int.
metadataBlock	Object defining the routing of MmMessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [4/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		Vector3	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: Vector3.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: Vector3.
metadataBlock	Object defining the routing of MmMessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [5/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		Vector4	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: Vector4.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: Vector4.
metadataBlock	Object defining the routing of MmMessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [6/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		string	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: string.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: string.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [7/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		float	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: float.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: float.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [8/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		byte []	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: byte array.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: byte array.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [9/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		bool	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: bool.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: bool.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [10/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		IMmSerializable	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: IMmSerializable.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: IMmSerializable. IMmSerializable
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [11/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		MmTransform	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: MmTransform.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: MmTransform. MmTransform
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

MmInvoke() [12/12]

void MercuryMessaging.IMmNode.MmInvoke	(	MmMethod	mmMethod,
		List< MmTransform >	param,
		MmMetadataBlock	metadataBlock
	)

Invoke an MmMethod with parameter: List<MmTransform>.

Parameters

mmMethod	MmMethod Identifier - MmMethod
param	MmMethod parameter: List<MmTransform>.
metadataBlock	Object defining the routing of Mmessages through MercuryMessaging Hierarchies. MmMetadataBlock

Implemented in MercuryMessaging.MmRelayNode.

---

The documentation for this interface was generated from the following file:

• C:/Users/ce223/Documents/Projects/MercuryMessaging/Assets/MercuryMessaging/Protocol/IMmNode.cs
