an MmRelayNode with an FSM to allow for limited MmResponder selection in the MmRelayNode's MmRoutingTable. More...

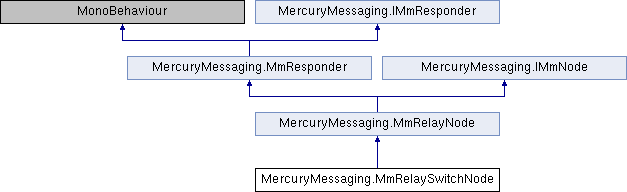

Inheritance diagram for MercuryMessaging.MmRelaySwitchNode:

Public Member Functions
override void	Awake ()
	Converts the standard MmRoutingTable into a FSM. Calls MmOnAwakeComplete through MmResponder Awake. More...

override void	Start ()
	Calls MmOnStartComplete through MmResponder Start. More...

virtual void	JumpTo (string newState)
	FSM control method: Jump to State, using MmRoutingTableItem name. More...

virtual void	JumpTo (MmRelayNode newState)
	FSM control method: Jump to State, using MmRoutingTableItem Responder reference. More...

Public Member Functions inherited from MercuryMessaging.MmRelayNode
	MmRelayNode ()
	Creates an empty MmResponder list on construction. More...

virtual MmRoutingTableItem	MmAddToRoutingTable (MmResponder mmResponder, MmLevelFilter level)
	Add an MmResponder to the MmRoutingTable, with level designation. More...

virtual MmRoutingTableItem	MmAddToRoutingTable (MmResponder mmResponder, string newName)
	Add an MmResponder to the MmRoutingTable, with level designation. More...

void	MmRefreshResponders ()
	Grab all MmResponders attached to the same GameObject. Does not grab any other MmRelayNodes attached to the same GameObject. More...

void	RefreshParents ()
	Iterates through RoutingTable list and assigns this MmRelayNode as a parent to child MmResponders. More...

virtual void	MmAddNodeToList (GameObject go)
	Given a GameObject, extract an MmRelayNode if present and add it to this MmRelayNode's Responder list. More...

virtual void	AddParent (MmRelayNode parent)
	Given an MmRelayNode, add it as parent to this instance's MmRoutingTable. More...

override void	MmInvoke (MmMessageType msgType, MmMessage message)
	Invoke an MmMethod. More...

virtual void	MmInvoke (MmMethod mmMethod, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with no parameter. More...

virtual void	MmInvoke (MmMethod mmMethod, bool param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: bool. More...

virtual void	MmInvoke (MmMethod mmMethod, int param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: int. More...

virtual void	MmInvoke (MmMethod mmMethod, float param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: float. More...

virtual void	MmInvoke (MmMethod mmMethod, Vector3 param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: Vector3. More...

virtual void	MmInvoke (MmMethod mmMethod, Vector4 param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: Vector4. More...

virtual void	MmInvoke (MmMethod mmMethod, string param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: string. More...

virtual void	MmInvoke (MmMethod mmMethod, byte[] param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: byte array. More...

virtual void	MmInvoke (MmMethod mmMethod, MmTransform param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: MmTransform. More...

virtual void	MmInvoke (MmMethod mmMethod, List< MmTransform > param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: List<MmTransform>. More...

virtual void	MmInvoke (MmMethod mmMethod, IMmSerializable param, MmMetadataBlock metadataBlock=null)
	Invoke an MmMethod with parameter: IMmSerializable. More...

override MmRelayNode	GetRelayNode ()
	Implementation of IMmResponder's GetRelayNode, which returns this. More...

Public Member Functions inherited from MercuryMessaging.MmResponder
virtual void	Update ()
	Base Update of MmResponder Derived classes should always override. More...

virtual void	MmOnAwakeComplete ()
	Post Awake callback used between objects implementing this interface. This allows for initialization steps that must occur before one instance's Awake and its Start. More...

virtual void	MmOnStartComplete ()
	Post Start callback used between objects implementing this interface This allows for initialization steps that must occur before one instance's Start and its first Update. More...

virtual void	MmRegisterAwakeCompleteCallback (IMmCallback callback)
	It is possible that certain handles are not going to be in-place when registration of the OnAwakeComplete callback is invoked. The is especially true in scenarios where MmRelayNodes are networked. This allows for a deferred registration, eliminating most instances where the Awake callback invocations fail. More...

virtual void	MmRegisterStartCompleteCallback (IMmCallback callback)
	It is possible that certain handles are not going to be in-place when registration of the OnStartComplete callback is invoked. The is especially true in scenarios where MmRelayNodes are networked. This allows for a deferred registration, eliminating most instances where the Start callback invocations fail. More...

Public Attributes
FiniteStateMachine< MmRoutingTableItem >	RespondersFSM
	The Finite state machine of the MmRelayNode's RoutingTable. More...

Public Attributes inherited from MercuryMessaging.MmRelayNode
bool	FlipNetworkFlagOnSend = false
	Does the node convert the message to a local message from networked on post send in order to guarantee that it does not send it over the network deeper in the hierarchy. More...

bool	AllowNetworkPropagationLocally = false
	Allows Node to pass a Network-only message into the hierarchy More...

bool	ReparentClonedRespondersToSelf = true
	Indicates whether cloned MmResponders should be added as children to the MmRelayNode's GameObject. More...

bool	Initialized
	Indicates whether the MmRelayNode is ready for use This gets set either in Awake or on the first MmInvoke. More...

bool	AutoGrabAttachedResponders = true
	There may be an issue where a message is received before self responders have been added to the list. In order to resolve that issue, we allow the node to automatically grab all responders. The consequence here is that you cannot have responders on a node that do not automatically get added to the list. More...

MmRoutingTable	RoutingTable
	List of associated Mercury Responders. Each Mercury Routing Table Item contains: MmResponder, Name, Level (Self, Child, Parent), Cloneable (Indicates whether the Responder should be cloned when MmRelayNode is awoken), MmTag (Multi-tag filter supported by Mercury XM). More...

Protected Member Functions
override bool	SelectedCheck (MmSelectedFilter selectedFilter, IMmResponder responder)
	Overrides MmRelayNode's Selected check to handle the FSM's current state. More...

Protected Member Functions inherited from MercuryMessaging.MmRelayNode
void	InitializeNode ()

virtual MmLevelFilter	LevelFilterAdjust (ref MmMessage message, MmLevelFilter direction)
	If the level filter is designated 'Child', then it is recorded locally, but converted to a 'Child+Self' for use by the RoutingTable (which need to pass the message on to all children, but still need to be able to execute the message on their own responders, otherwise, it just goes to the terminal points of the graph without ever executing). More...

virtual MmActiveFilter	ActiveFilterAdjust (ref MmMessage message)
	Allows modification of active filter in message as it gets passed between MmRelayNodes. More...

virtual MmSelectedFilter	SelectedFilterAdjust (ref MmMessage message)
	Allows modification of selected filter in message as it gets passed between MmRelayNodes. More...

virtual MmNetworkFilter	NetworkFilterAdjust (ref MmMessage message)
	Allows modification of network filter in message as it gets passed between MmRelayNodes. More...

virtual bool	ResponderCheck (MmLevelFilter levelFilter, MmActiveFilter activeFilter, MmSelectedFilter selectedFilter, MmNetworkFilter networkFilter, MmRoutingTableItem mmRoutingTableItem, MmMessage message)
	This method determines if a particular MmResponder should receive a message via MmInvoke. This performs 4 checks: Tag Check, Level Check, Active Check, & Selected Check. More...

virtual bool	TagCheck (MmRoutingTableItem mmRoutingTableItem, MmMessage message)
	Determine if MmResponder passes MmRelayNode tag filter check using value embedded in MmMessage. More...

virtual bool	LevelCheck (MmLevelFilter levelFilter, IMmResponder responder, MmLevelFilter responderLevel)
	Determine if MmResponder passes MmRelayNode level filter check using value embedded in MmMessage. More...

virtual bool	ActiveCheck (MmActiveFilter activeFilter, IMmResponder responder)
	Determine if MmResponder passes MmRelayNode active filter check using value embedded in MmMessage. More...

virtual bool	NetworkCheck (MmRoutingTableItem mmRoutingTableItem, MmMessage message)
	Checks if a responder should recieve a message based on the network flag in a control block. Network messages can go to other nodes, but not to self responders. More...

Properties
MmRelayNode	Current `[get]`
	FSM Current State More...

string	CurrentName `[get]`
	MmRoutingTable name of FSM current state. More...

StateEvents	this[string state] `[get, set]`
	Accessor for particular state by name. More...

Properties inherited from MercuryMessaging.MmRelayNode
IMmNetworkResponder	MmNetworkResponder `[get]`
	Associated MmNetworkResponder. If an MmNetworkResponder is attached o the same GameObject, it will automatically attach to this MmRelayNode. This turns all MmMethod invocations into networked MmMethod invocations, with no additional effort. More...

string	Name `[get]`
	MmRelayNode name: returns GameObject name. More...

Properties inherited from MercuryMessaging.MmResponder
GameObject	MmGameObject `[get]`
	Handle to an instance's GameObject. More...

MmTag	Tag `[get, set]`
	MmTags allow you to specify filters for execution in Mercury XM graphs. More...

bool	TagCheckEnabled `[get, set]`
	Determines whether tag checking is enabled for this IMmResponder More...

Properties inherited from MercuryMessaging.IMmResponder
MmTag	Tag `[get, set]`
	MmTags allow you to specify filters for execution in MercuryMessaging Hierarchies. MmTag More...

GameObject	MmGameObject `[get]`
	Handle to an instance's GameObject. More...

bool	TagCheckEnabled `[get, set]`
	Determines whether tag checking is enabled for this IMmResponder More...

Additional Inherited Members
Static Public Member Functions inherited from MercuryMessaging.MmRelayNode
static MmRelayNode	GetRelayNode (IMmResponder iMmResponder)
	Given an MmResponder, extract an MmRelayNode from it's GameObject, if one is present. More...

static MmRelayNode	GetRelayNode (GameObject go)
	Given a GameObject, extract the first MmRelayNode, if any are present. More...

Protected Attributes inherited from MercuryMessaging.MmRelayNode
Queue< MmRoutingTableItem >	MmRespondersToAdd
	Queue of MmResponders to add once list is no longer in use by an MmInvoke More...

Queue< KeyValuePair< MmMessageType, MmMessage > >	SerialExecutionQueue
	Queue of Memessages to route if serialExecution is enabled and messages are received while another message is being executed. More...

Detailed Description

an MmRelayNode with an FSM to allow for limited MmResponder selection in the MmRelayNode's MmRoutingTable.

Member Function Documentation

◆ Awake()

override void MercuryMessaging.MmRelaySwitchNode.Awake ( )

virtual

Converts the standard MmRoutingTable into a FSM. Calls MmOnAwakeComplete through MmResponder Awake.

Reimplemented from MercuryMessaging.MmRelayNode.

◆ JumpTo() [1/2]

virtual void MercuryMessaging.MmRelaySwitchNode.JumpTo ( string newState )

virtual

FSM control method: Jump to State, using MmRoutingTableItem name.

Parameters

newState Name of target state.

◆ JumpTo() [2/2]

virtual void MercuryMessaging.MmRelaySwitchNode.JumpTo ( MmRelayNode newState )

virtual

FSM control method: Jump to State, using MmRoutingTableItem Responder reference.

Parameters

newState Name of target state.

◆ SelectedCheck()

override bool MercuryMessaging.MmRelaySwitchNode.SelectedCheck	(	MmSelectedFilter	selectedFilter,
		IMmResponder	responder
	)

protectedvirtual

Overrides MmRelayNode's Selected check to handle the FSM's current state.

Parameters

selectedFilter	SelectedCheck
responder	Observed MmResponder.

Returns

Reimplemented from MercuryMessaging.MmRelayNode.

◆ Start()

override void MercuryMessaging.MmRelaySwitchNode.Start ( )

virtual

Calls MmOnStartComplete through MmResponder Start.

Reimplemented from MercuryMessaging.MmRelayNode.

Member Data Documentation

◆ RespondersFSM

FiniteStateMachine<MmRoutingTableItem> MercuryMessaging.MmRelaySwitchNode.RespondersFSM

The Finite state machine of the MmRelayNode's RoutingTable.

Property Documentation

◆ Current

MmRelayNode MercuryMessaging.MmRelaySwitchNode.Current

get

FSM Current State

◆ CurrentName

string MercuryMessaging.MmRelaySwitchNode.CurrentName

get

MmRoutingTable name of FSM current state.

◆ this[string state]

StateEvents MercuryMessaging.MmRelaySwitchNode.this[string state]

getset

Accessor for particular state by name.

Parameters

state Name of target state.

Returns: FSM State if present.

The documentation for this class was generated from the following file:

C:/Users/ce223/Documents/Projects/MercuryMessaging/Assets/MercuryMessaging/Protocol/MmRelaySwitchNode.cs
